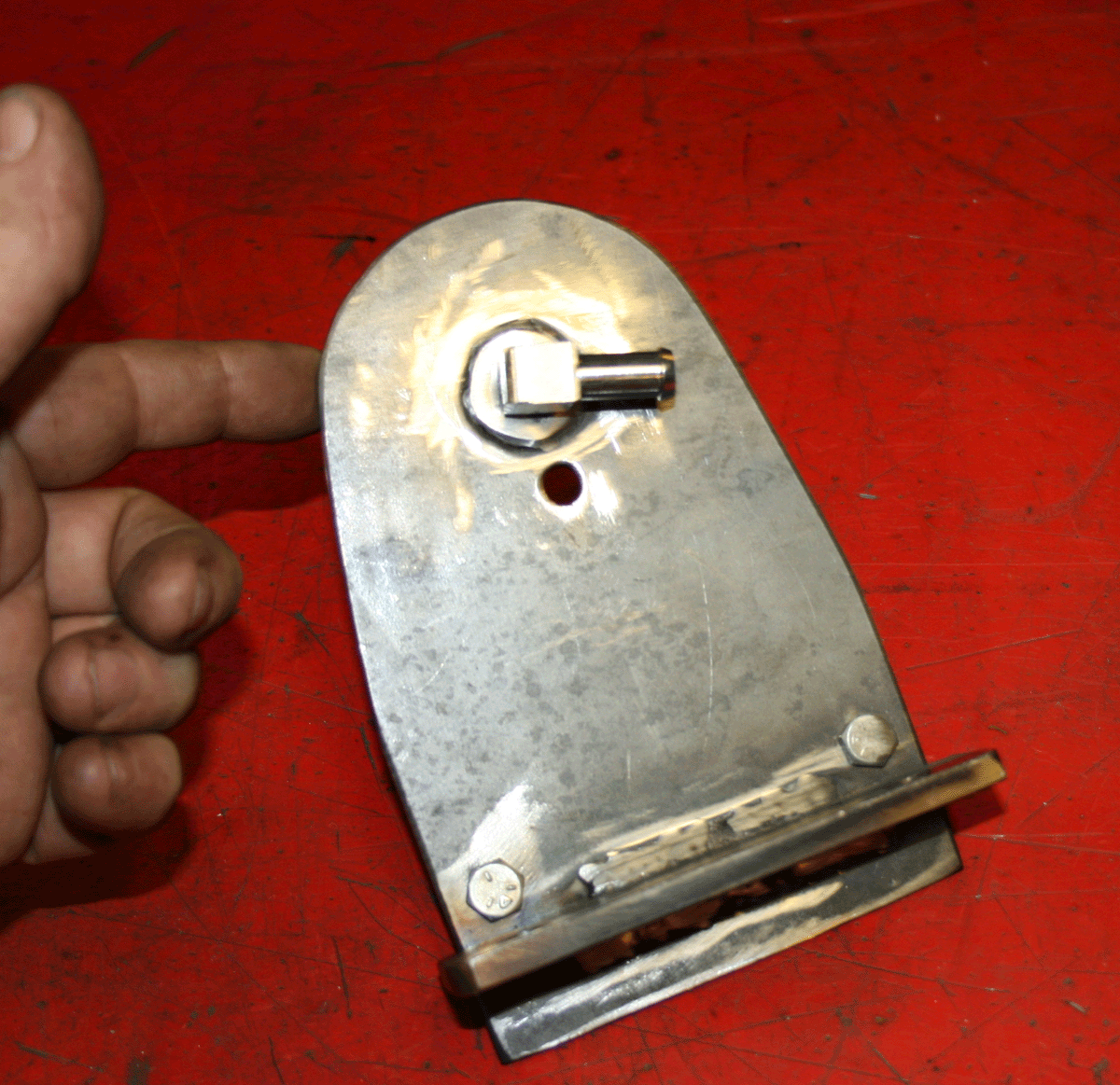

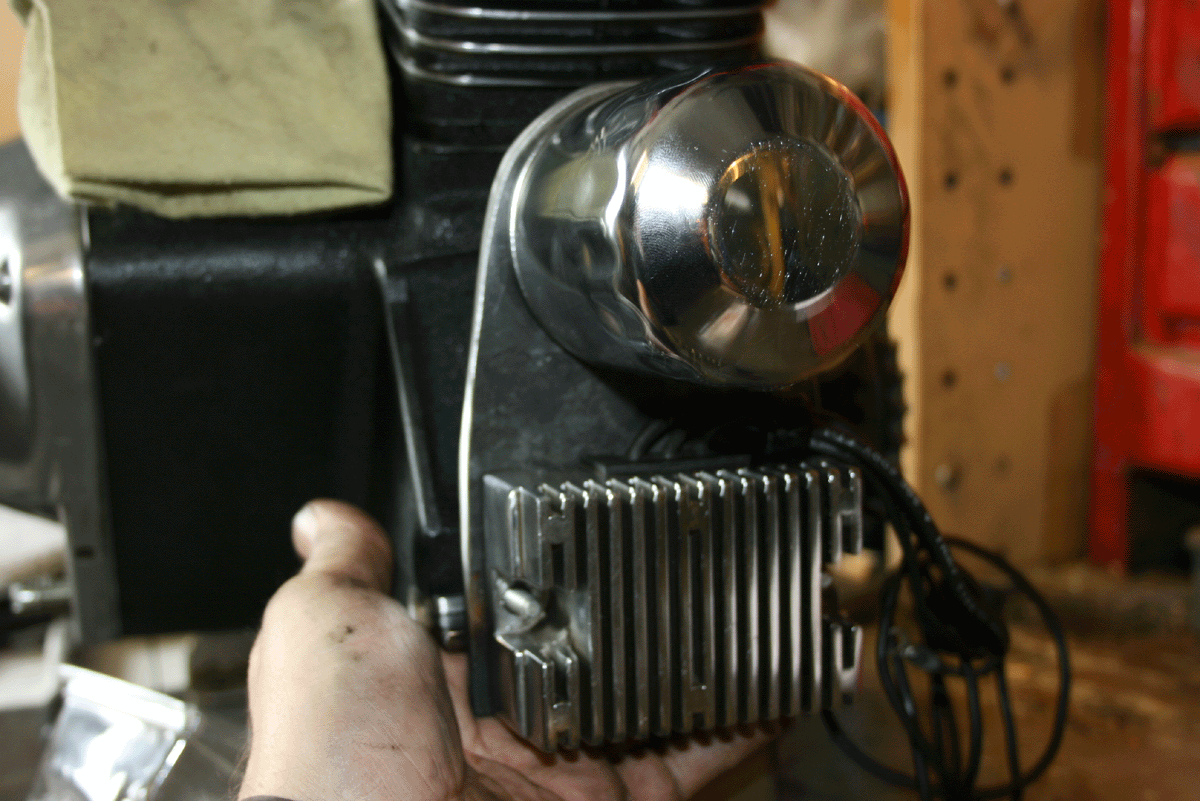

Built out of plate steel this baby will last. Sometimes simplicity is best and the right way to go. This bracket is just that. Its Heavy duty and does the job. The 1/4" thick rear mount will mount soild under the front of the motor and be held on with the grade 8 front engine mounting bolts.

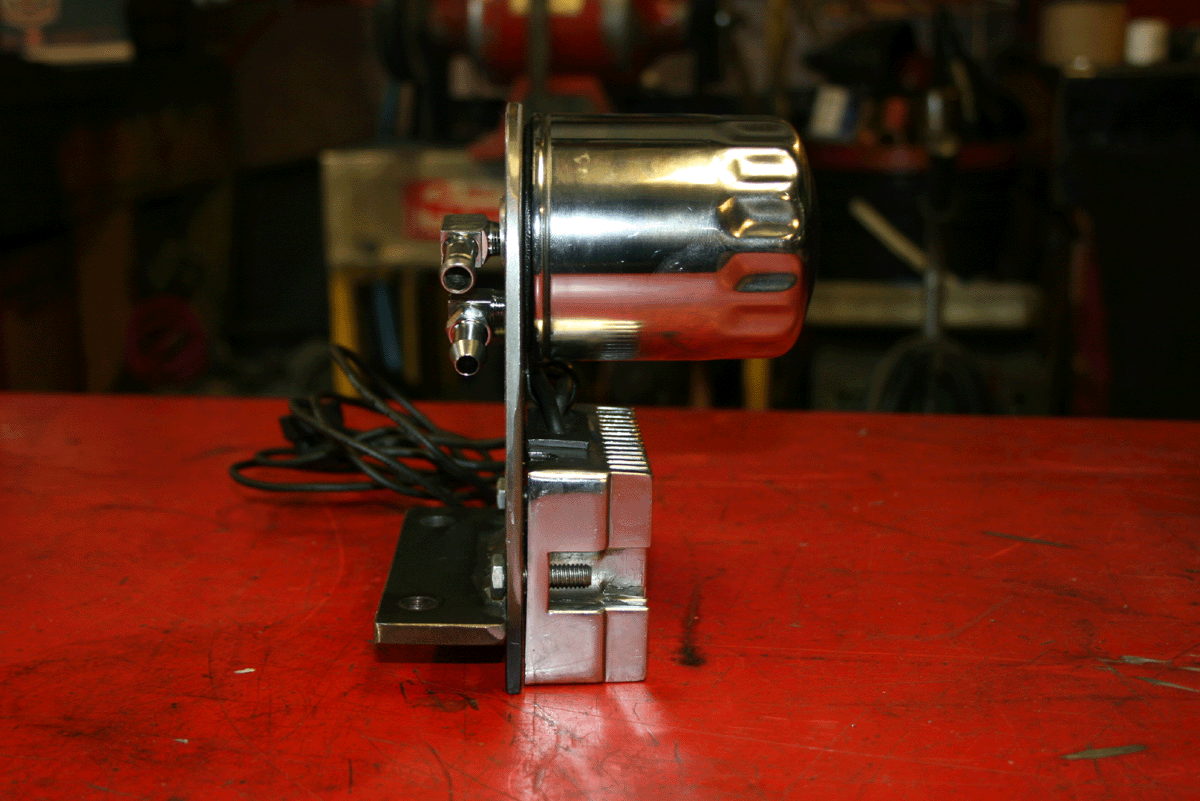

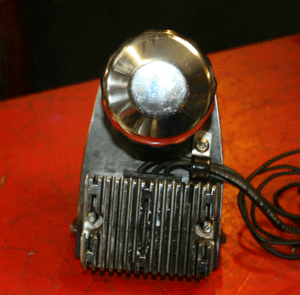

I added the clamp for the wires just to keep it neat and clean....or I just can't leave things well enough alone...ha ha
Gone for powder now..........
